Objectives:

The purpose of this project is to: - analyse which countries have the highest and lowest % contribution of renewables in energy production; - explore the relationship between CO2 per capita emissions and the deployment of renewables.

Data:

The National Bureau of Economic Research (NBER) has a a very interesting data set on the adoption of about 200 technologies in more than 150 countries since 1800. This is theCross-country Historical Adoption of Technology (CHAT) dataset.

The following is a description of the variables:

Here, I used the code to load and organise/tidy the data:

technology <- readr::read_csv('https://raw.githubusercontent.com/rfordatascience/tidytuesday/master/data/2022/2022-07-19/technology.csv')

#get all technologies
labels <- technology %>%
  distinct(variable, label)

# Get country names using 'countrycode' package
technology <- technology %>%
  filter(iso3c != "XCD") %>%
  mutate(iso3c = recode(iso3c, "ROM" = "ROU"),
         country = countrycode(iso3c, origin = "iso3c", destination = "country.name"),
         country = case_when(
           iso3c == "ANT" ~ "Netherlands Antilles",
           iso3c == "CSK" ~ "Czechoslovakia",
           iso3c == "XKX" ~ "Kosovo",
           TRUE           ~ country))

#make smaller dataframe on energy
energy <- technology %>%
  filter(category == "Energy")

# download CO2 per capita from World Bank using {wbstats} package
# https://data.worldbank.org/indicator/EN.ATM.CO2E.PC
co2_percap <- wb_data(country = "countries_only",
                      indicator = "EN.ATM.CO2E.PC",
                      start_date = 1970,
                      end_date = 2022,
                      return_wide=FALSE) %>%
  filter(!is.na(value)) %>%
  #drop unwanted variables
  select(-c(unit, obs_status, footnote, last_updated))

# get a list of countries and their characteristics
# we just want to get the region a country is in and its income level
countries <-  wb_cachelist$countries %>%
  select(iso3c,region,income_level)

NOTE: This is a very rich data set, not just for energy and CO2 data, but for many other technologies.

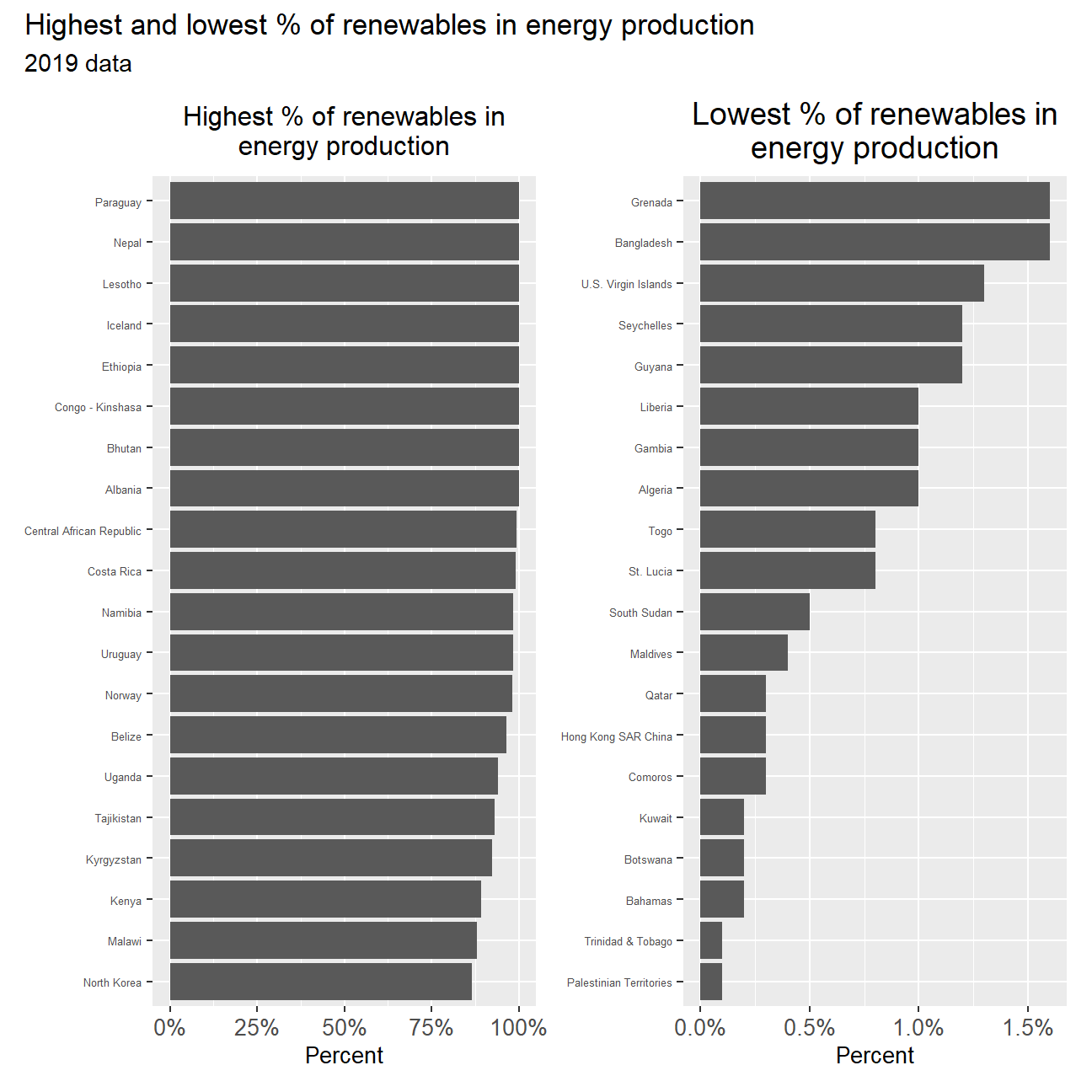

First, I: - Produced a graph with the countries with the highest and lowest % contribution of renewables in energy production. This is made up of elec_hydro, elec_solar, elec_wind, and elec_renew_other. - Used the patchwork package to assemble the two charts next to each other:

NOTE: - Decided to filter on year == 2019 only to replicate the graphs shown since the subtitle, in the plots above it says “2019 data” - Needed to extract specific types of energy to create a ‘renewable energy’ column:

# Create country's proportion of total energy production that stems from renewable sources
# We used 2019 data only (see NOTE above code chunk)

renewables_summary <- energy %>%
  select(-label) %>%
  filter(year == 2019) %>%
  pivot_wider(names_from = variable, values_from = value) %>% #Transform to wide form dataset
  mutate(renewables_proportion = round((elec_hydro + elec_solar +
  elec_wind + elec_renew_other) / elecprod, 3) * 100) %>%
  #Create proportion variable.
  #Take note that we round to 3 here to perfectly replicate the
  #graph shown above.
  #Any other value will return a slightly different plot
  arrange(desc(renewables_proportion)) %>%
  ungroup() %>%
  filter(renewables_proportion > 0)

# Extract top 20 countries by renewable energy proportion
top_20_renewables <- renewables_summary %>%
  slice_max(n = 20, order_by = renewables_proportion)

# Extract bottom 20 countries by renewable energy proportion
bottom_20_renewables <- renewables_summary %>%
  slice_min(n = 20, order_by = renewables_proportion)

# Store a plot of top 20 countries reordered on proportion
top_20_plot <- ggplot(top_20_renewables,
aes(x = renewables_proportion,
y = fct_reorder(country, renewables_proportion))) +
  geom_col(orientation = "y")  +
  scale_x_continuous(labels = scales::percent_format(scale = 1)) +
  labs(title = str_wrap("Highest % of renewables in energy production", 30), x = "Percent") +
  theme(plot.title = element_text(size = 12, hjust = 0.5),
        axis.title.x = element_text(size = 10),
        axis.title.y = element_blank(),
        axis.text.x = element_text(size = 10),
        axis.text.y = element_text(size = 5))

# Store a plot of bottom 20 countries reordered on proportion
bottom_20_plot <- ggplot(bottom_20_renewables,
aes(x = renewables_proportion,
y = fct_reorder(country, renewables_proportion))) +
  geom_col(orientation = "y")  +
  scale_x_continuous(labels = scales::percent_format(scale = 1)) +
  labs(title = str_wrap("Lowest % of renewables in energy production", 30), x = "Percent") +
  theme(plot.title = element_text(size = 12, hjust = 0.5),
        axis.title.x = element_text(size = 10),
        axis.title.y = element_blank(),
        axis.text.x = element_text(size = 10),
        axis.text.y = element_text(size = 5))

# Use patchwork package to create comparison plot
top_20_plot + bottom_20_plot +
  plot_annotation(title = "Highest and lowest % of renewables in energy production",
                  subtitle = "2019 data") +
  theme(plot.title = element_text(size = 14),
        plot.subtitle = element_text(size = 12))

RenewablesPercentagePlot

Conclusion:

From observing the animation, two features are striking:

1. The first would be that we observe an inverse relationship between CO2 emissions and % renewables; that is, when a larger proportion of a country’s energy production comes from renewable sources, the lower the CO2 emissions for that country and vice-versa.

This is represented by the points that move along a north-west to south-east line in each of the income group plots. This can mostly be seen in all facets except “Low Income”; these countries had CO2 emissions that stayed pretty much constant no matter how their % renewables changed.

2. The second pattern we notice is that for countries in the High Income group, there exist a few select countries in which % renewable energy production proportion remained relatively constant despite CO2 emissions fluctuating drastically (CO2 emissions changed perhaps due to compliance to climate change regulations); these are also the same countries with the highest CO2 emissions amongst all other countries.

Likewise, many other countries changed the extent to which they relied on renewable energy in their energy output but had no change to CO2 emissions; these were mainly countries with relatively lower CO2 emissions to begin with. => This pattern implies that, for these countries, there exists almost no correlation between CO2 per cap and % renewables across time.

Animation:

I produced an animation to explore the relationship between CO2 per capita emissions and the deployment of renewables:

To create this animation I: - Manipulated the date, and - Created the graph in the standard ggplot way.

The only gganimate layers I needed to add to the graphs are:

  labs(title = 'Year: {frame_time}',
       x = '% renewables',
       y = 'CO2 per cap') +
  transition_time(year) +
  ease_aes('linear')

# Rename columns in co2 dataset for ease
co2_percap <- co2_percap %>%
  rename(year = date) %>%
  rename(emissions = value)

# Create full dataset of energy, income and co2 emissions using join functions
energy_income_co2 <- energy %>%
  left_join(., countries, by = "iso3c") %>%
  left_join(., select(co2_percap, -c(iso2c, indicator, indicator_id)), by = c("iso3c", "year", "country")) %>%
  mutate(year = as.integer(year)) #Change year to integer so that the animation correctly reflects yearly change

# Create renewables proportion of countries across years
renewables_proportion_summary <- energy_income_co2 %>%
  select(-label) %>%
  pivot_wider(names_from = variable, values_from = value) %>% #Transform to wide data
  select(-c(elec_coal, elec_cons, elec_gas, elec_nuc, elec_oil, electric_gen_capacity)) %>% #ALL GOOD TIL NOW
  group_by(country, year) %>%
  summarise(renewables_proportion = (elec_hydro + elec_solar + elec_wind + elec_renew_other) / elecprod * 100,
            income_level = first(income_level), n = n(),
            emissions = mean(emissions)) %>%   #Create summary statistics that will be plotted
  filter(!(is.na(income_level))) %>%
  filter(year >= 1990)

# Plot faceted (income level) animation of emissions againsnt renewables proportion across years
ggplot(renewables_proportion_summary, aes(renewables_proportion, emissions, colour = factor(income_level))) +
  geom_point(show.legend = FALSE) + #Create scatterplot
  facet_wrap(~ income_level) + #Facet on incomem level
  scale_x_continuous(labels = scales::percent_format(scale = 1)) +
  labs(title = 'Year: {frame_time}',
       x = '% renewables',
       y = 'CO2 per cap') +
  transition_time(year) +
  ease_aes('linear') #Animation controls

## NULL
